CD54HCT573F3A Texas Instruments Latches Non Inverting CMOS 20 CDIP

Shenzhen Hongxinwei Technology Co., Ltd
Contact Now

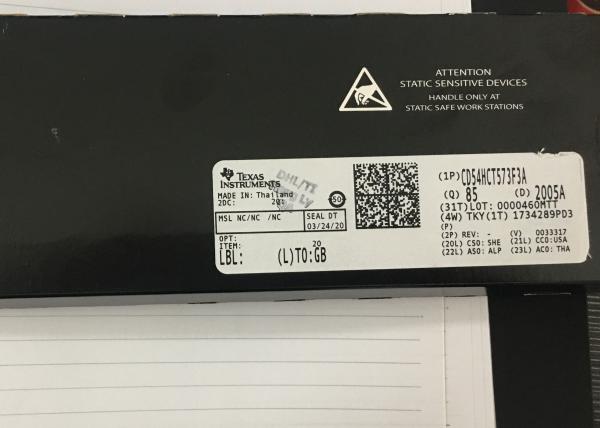

CD54HCT573F3A Texas Instruments Latches Non Inverting CMOS 20 CDIP

  • 1
  • 2

Brand Name : Texas Instruments

Model Number : CD54HCT573F3A

Certification : ROHS

Place of Origin : CHIAN

MOQ : 10PCS

Price : NEGOTIABLE

Payment Terms : T/T, Western Union

Supply Ability : 1170PCS

Delivery Time : 2-3DAYS

Packaging Details : 117PCS/BOX

Product Category : Latches

Number of Circuits : 1 Circuit

Logic Type : CMOS

Logic Family : HCT

Polarity : Non Inverting

Quiescent Current : 8 uA

Number of Output Lines : 8 Line

High Level Output Current : - 6 mA

Low Level Output Current : 32mA

Propagation Delay Time : 35 ns at 4.5 V

Supply Voltage - Max : 5.5 V

Supply Voltage - Min : 4.5 V

Minimum Operating Temperature : - 55 C

Maximum Operating Temperature : + 125 C

Height : 4.57mm

Length : 24.2 mm

Output Type : 3-State

Type : D-Type

Width : 6.92 mm

Mounting Style : Through Hole

Number of Channels : 8 Channels

Number of Input Lines : 8 Line

Operating Supply Voltage : 5 V

Product Type : Latches

Reset Type : No Reset

Factory Pack Quantity : 1

Contact Now

CD54HCT573F3A Texas Instruments Latches High Speed CMOS Logic Octal Transparent Latch with 3-State Output 20-CDIP

1. 4.5-V to 5.5-V VCCOperation
DWide Operating Temperature Range of−55°C to 125°
Balanced Propagation Delays andTransition Times
Standard Outputs Drive Up To 10 LS-TTLLoads
Significant Power Reduction Compared toLS-TTL Logic ICs
Inputs Are TTL-Voltage Compatible

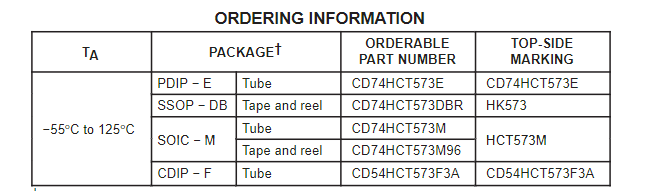

2. description/ordering information

The ’HCT573 devices are octal transparent D type latches. When the latch-enable (LE) inputis high, the Q outputs follow the data (D) inputs.When LE is low, the Q outputs are latched at thelogic levels of the D inputs.A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (highor low) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus linessignificantly. The high-impedance state and increased drive provide the capability to drive bus lines withoutinterface or pullup components.OE does not affect the internal operations of the latches. Old data can be retained or new data can be enteredwhile the outputs are in the high-impedance state.To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullupresistor; the minimum value of the resistor is determined by the current-sinking capability of the driver

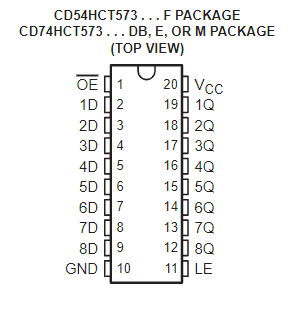

CD54HCT573F3A Texas Instruments Latches Non Inverting CMOS 20 CDIP

.CD54HCT573F3A Texas Instruments Latches Non Inverting CMOS 20 CDIP

3.

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your MOQ?

A:We provide you small MOQ for each item, it depends your specific order!

Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.

Q4: How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.

Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
