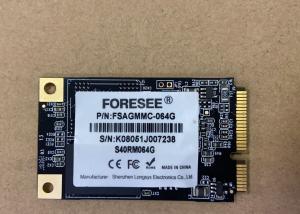

FSAGMMC-064G ATA 1030mW Tablet PC SSD Semiconductor Devices

1.General Description

The FORESEE SSD (Solid State Drive) fully consists of semiconductor devices using NAND Flash Memory which provide high reliability and high performance for a storage media. The SSD doesn't have any moving parts such as platter (disk) and head media, which provides a better solution in a notebook PC, Tablet PC and industrial PC for a storage device providing higher performance, reduced latencies, and a low power consumption in a small form factor. SSD has the same host interface with Hard Disk Drives and has a same physical dimension

2.Capacity

32/64/128/256GB is availabl

3.Host interface
−Serial ATA interface of 6.0Gbps
−Complies with ATA/ATAPI-8
−Supports NCQ
−Supports TRIM
•Performance
·32GB
−Read: Up to 410MB/s
−Write: Up to 250MB/s
·64GB
−Read: Up to 410MB/s
−Write: Up to 250MB/s
·128GB
−Read: Up to 530MB/s
−Write: Up to 430MB/s
·256GB
−Read: Up to 530MB/s
−Write: Up to 440MB/s

4.Power Consumption
−Active write:1030mW(256GB)
−Active read:980mW(256GB)
•Form Factor
−JEDEC MO-300 standard
•Temperature
−Operating : 0°C to 70°C
•Shock
−Shock : 1500G, duration 0.5ms, Half Sine Wave
−Vibration : 7~800Hz, 3.08Grms, 30min/axis(X,Y,Z)

5.MTBF
−1,500,000 Hours
•Weight
−32/64/128/256GB
−Max 8g

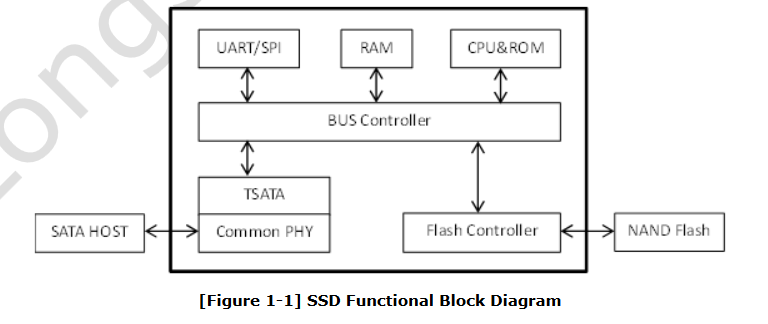

6.SD Functional Block Diagram
