TPS60400QDBVRQ1 Switching Voltage Regulators Auto Cat Unreg 60mA Chg Pump Vltg Invrtr
1.Features
Qualifiedfor AutomotiveApplications
• AEC-Q100TestGuidanceWiththe FollowingResults:
– DeviceTemperatureGrade1:
–40°C to+125°C AmbientOperatingTemperatureRange
– Device HBM ESD Classification Level2
– Device CDM ESD Classification LevelC6
• InvertsInputSupplyVoltage
• Up to 60-mAOutputCurrent
• OnlyThreeSmall1-μF CeramicCapacitorsNeeded
• Input Voltage Range From1.8 V to 5.25V
• PowerSave-Modefor ImprovedEfficiencyat LowOutputCurrents(TPS60400-Q1)
• DeviceQuiescentCurrentTypical:100 μA
• IntegratedActiveSchottky-Diodefor Start-UpIntoLoad
• Small5-PinSOT23Package
2.Applications
• AutomotiveInfotainment
• AutomotiveCluster
• LCDDisplays
• NegativeSupplyVoltages
3.Description
TheTPS6040x-Q1familyof devicesgenerateanunregulatednegativeoutputvoltagefroman inputvoltagerangingfrom1.8 V to 5.25V. The devicesaretypicallysuppliedby a preregulatedsupplyrail of 5 Vor 3.3 V. Dueto its wide-inputvoltagerange,two orthreeNiCd,NiMH,or alkalinebatterycells,as well asone Li-Ioncell, can also powerthem.
Onlythreeexternal1-μF capacitorsare requiredtobuilda completeDC-DCchargepumpinverter.Assembledin a 5-pinSOT-23package,the completeconvertercanbe builton a 50-mm2boardarea.Replacingthe Schottkydiodetypicallyneededforstart-upinto loadwith integratedcircuitrycan achieveadditionalboardareaandcomponentcountreduction.
TheTPS6040x-Q1can delivera maximumoutputcurrentof 60 mA, with a typicalconversionefficiencyof greaterthan90%overa wideoutputcurrentrange.ThreedeviceoptionsTPS60401/2/3-Q1with 20-kHz,50-kHz,and 250-kHzfixedfrequencyoperationareavailable.TPS60400-Q1devicecomeswithavariableswitchingfrequencyto reduceoperatingcurrentin applicationswitha wideloadrangeandenablesthe designwith low-valuecapacitors

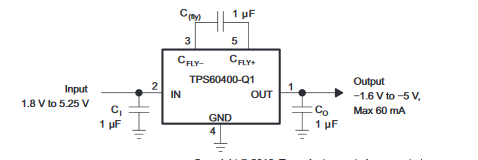

4.Typical Application Circuit

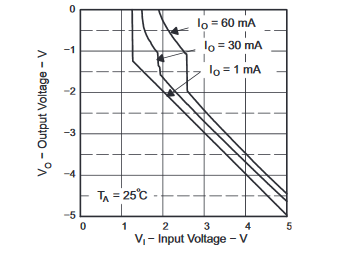

5.Output Voltage vs Input Voltage
